01 / FUNCTION & CONSTRUCTION
Roll-top storage with a defined closure routine
The top section rolls down before being secured by the buckle arrangement. This creates a flexible opening and lets the user review the stored load against the required closure position. Do not treat the full illustrated height as usable packing height without leaving enough material for the agreed roll. For an OEM waterproof bike pannier, document the closure method, opening size and finished-bag weather test alongside the main-compartment specification.
02 / FUNCTION & CONSTRUCTION

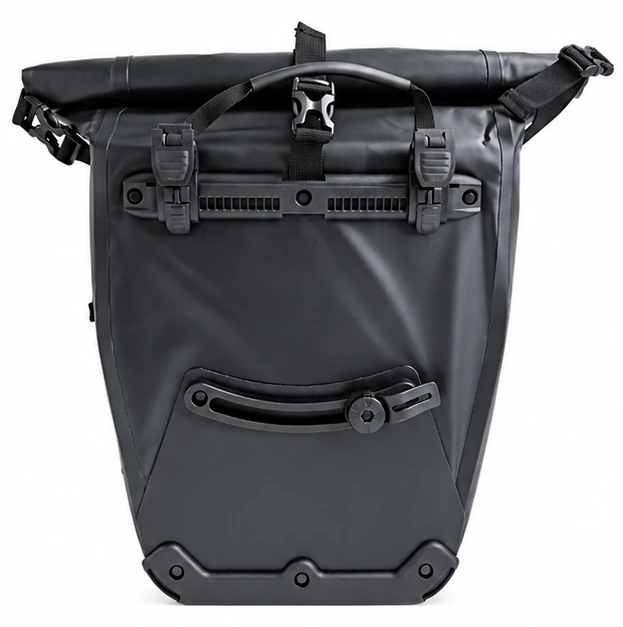

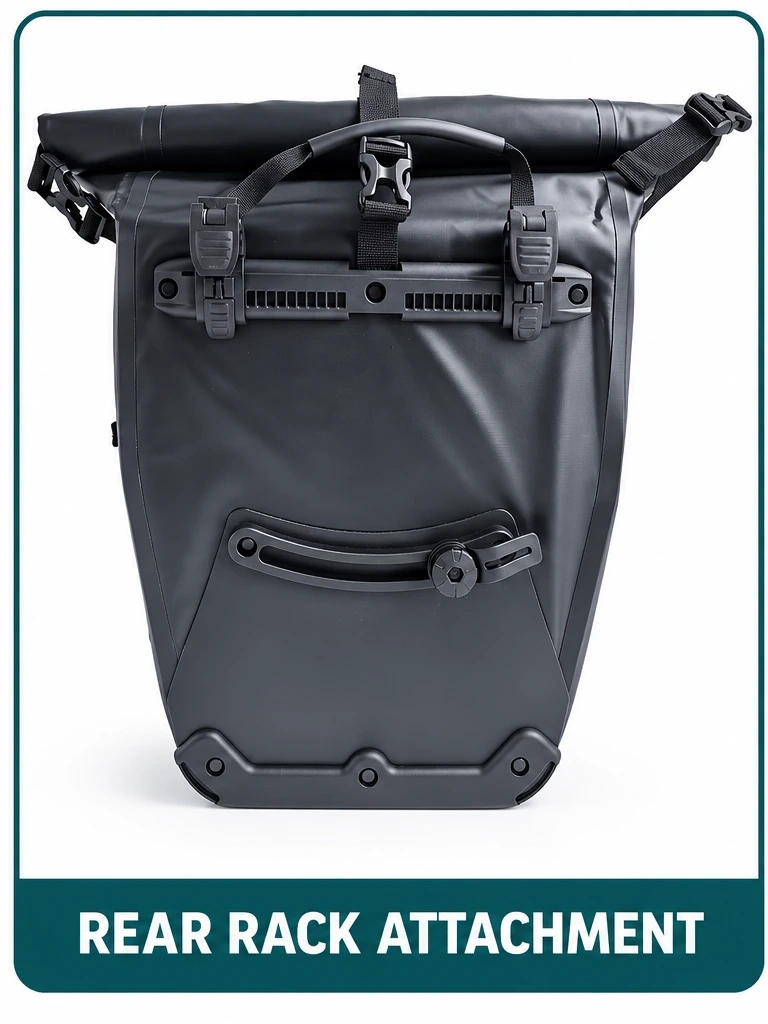

Two upper hooks on a rear attachment rail
The rear view shows two attachment hooks positioned on a horizontal rail. A separate curved fitting lower on the back helps define the stabilizing arrangement. These details matter when comparing a rack pannier with a frame or saddle-mounted bag. Confirm hook opening, rail spacing, lower contact position and the intended rack tubing before approval. The photographs do not establish universal rack compatibility or a named third-party mounting standard.
03 / FUNCTION & CONSTRUCTION
An external zip pocket for separate access
A horizontal zipper with a contrasting surround sits above the front cord panel. It offers a separate access point from the roll-top main compartment, useful when planning an organized commuter bag. Review the pocket depth, lining, slider reach and closure construction on the sample. Do not assume that every exterior pocket has the same water-protection level as the main body; define the relevant test and intended contents for each compartment.
04 / FUNCTION & CONSTRUCTION

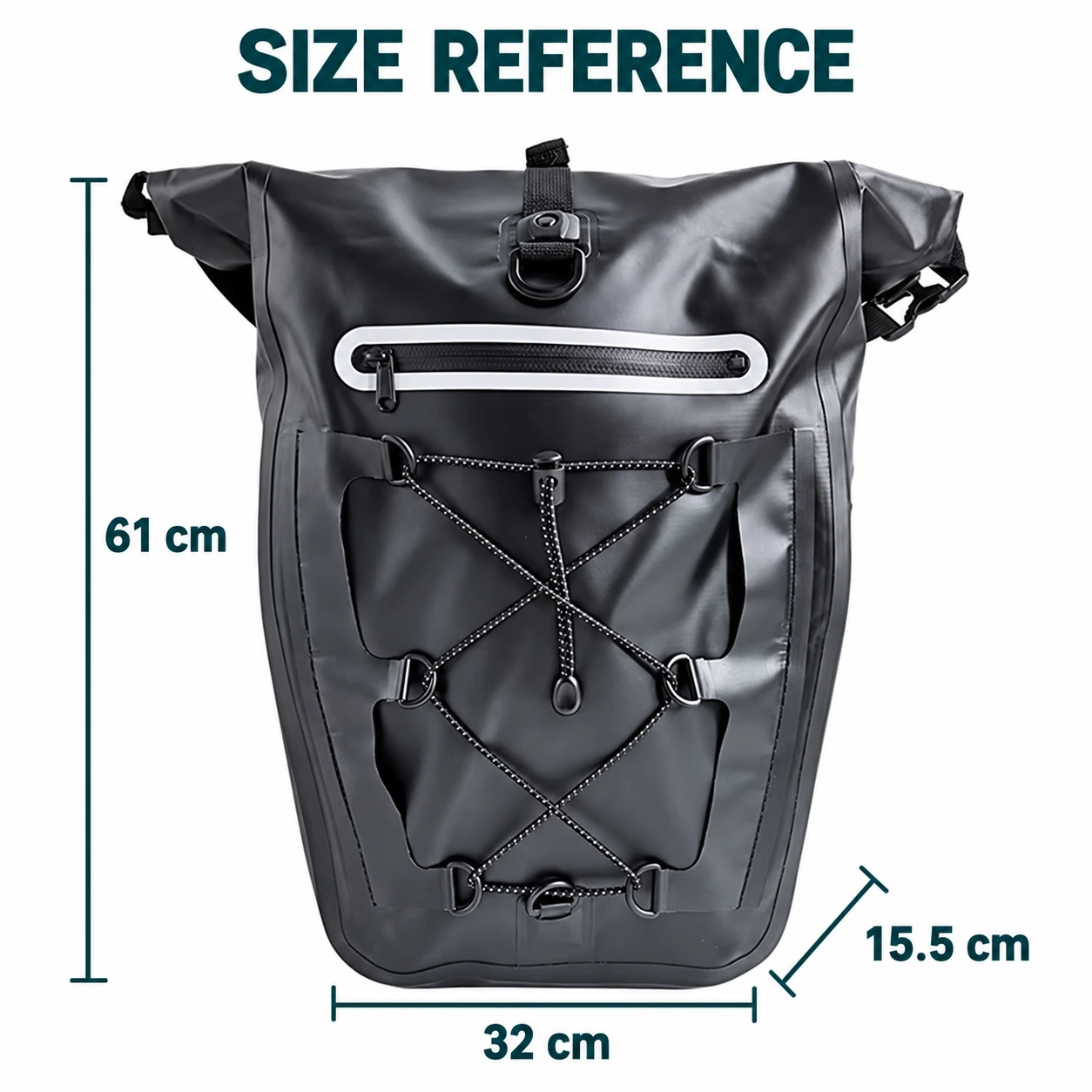

A front elastic-cord panel with multiple anchor points
The front bungee cord crosses between attachment loops and uses a central adjustment arrangement. This gives the bag an external retention area to review for suitable lightweight items. Check cord tension, anchor security and clearance from the wheel, drivetrain and rider's legs with the intended load. It is not a verified heavy-load restraint or a substitute for correctly closing and loading the main pannier.
05 / FUNCTION & CONSTRUCTION

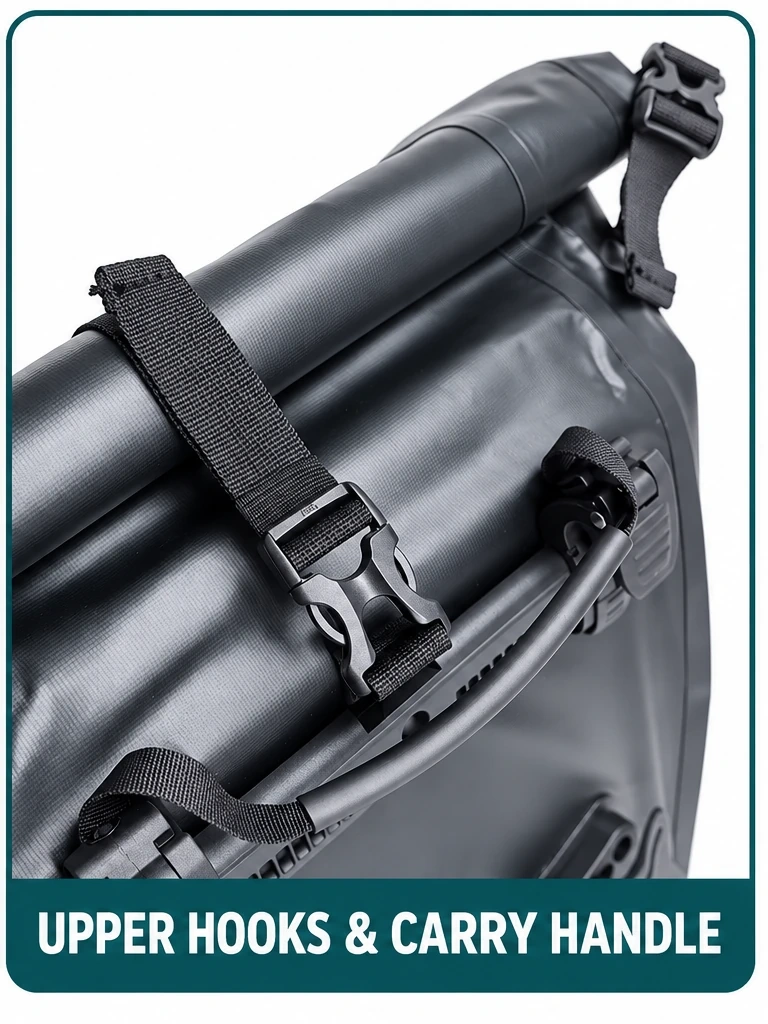

Carry handle and reinforced lower construction
The rear close-up shows a carrying grip near the upper rail, while the full back view shows a shaped reinforced section at the bottom. These areas support the handling and wear points to inspect when moving between the bicycle and an off-bike destination. Check loaded lifting, bottom contact and attachment fasteners on the approved construction. The listing mentions a shoulder strap, so confirm whether a strap and its hardware are included in the selected order.
06 / FUNCTION & CONSTRUCTION
A black PVC base for a custom cycling range
The plain black body and contrasting zipper surround create a coordinated starting point for a private-label rack pannier. The folder title refers to a 500D PVC option, while the parameter sheet identifies PVC without a verified fabric count. Confirm the exact backing, thickness and material specification before using 500D in a purchase order. Review custom artwork away from the front zipper, cord anchors and moving closure areas.
