01 / FUNCTION & CONSTRUCTION

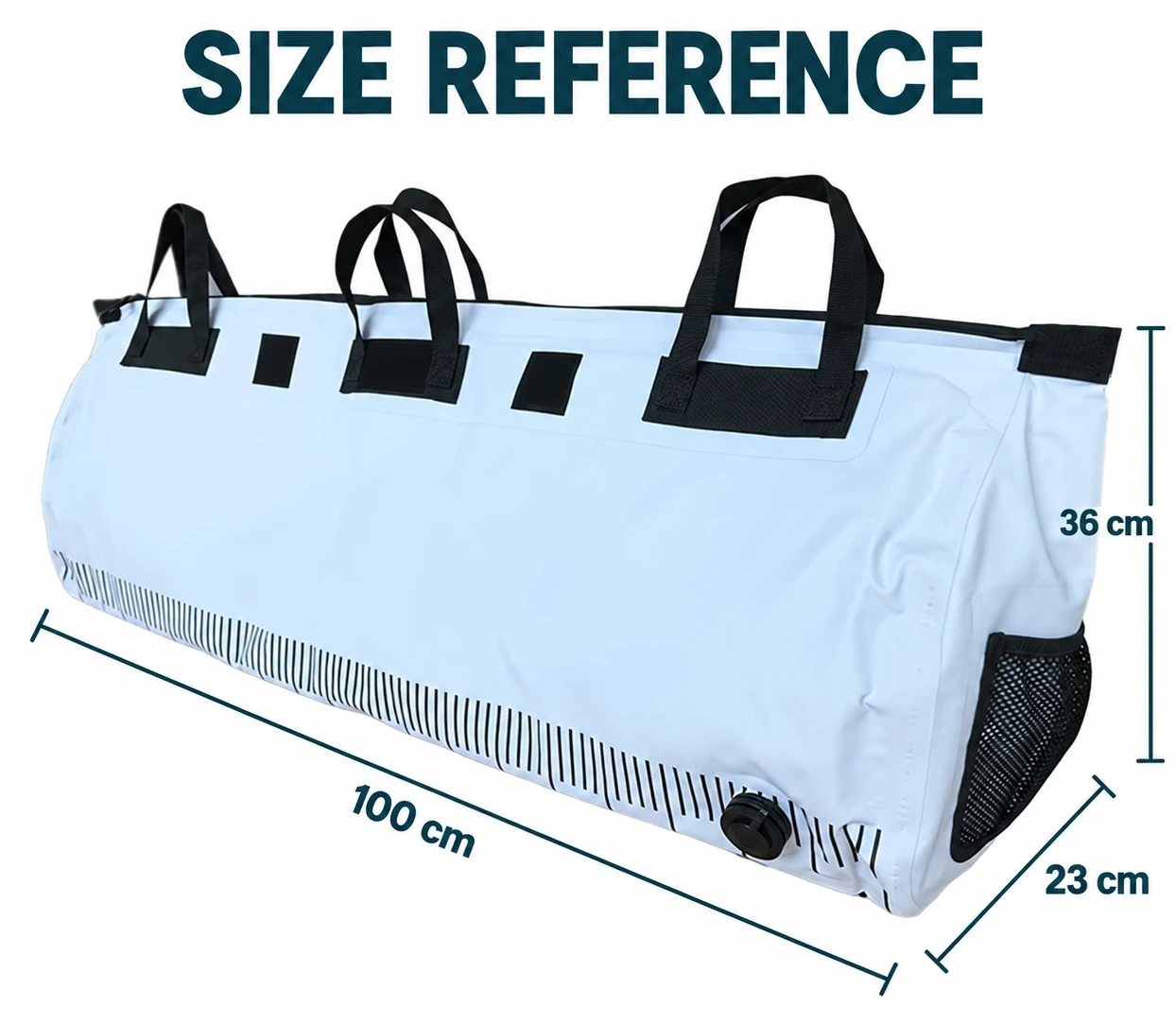

A 100 cm reference length for a marine cooler range
The supplied diagram identifies a 100 cm length, 36 cm height and 23 cm depth. These are external reference measurements, useful when comparing available deck, locker or transport space. They do not establish the internal fish length or an exact litre capacity. For an OEM fish kill bag, request the usable opening and internal dimensions, then confirm the intended catch size and ice allowance using a physical sample.
02 / FUNCTION & CONSTRUCTION

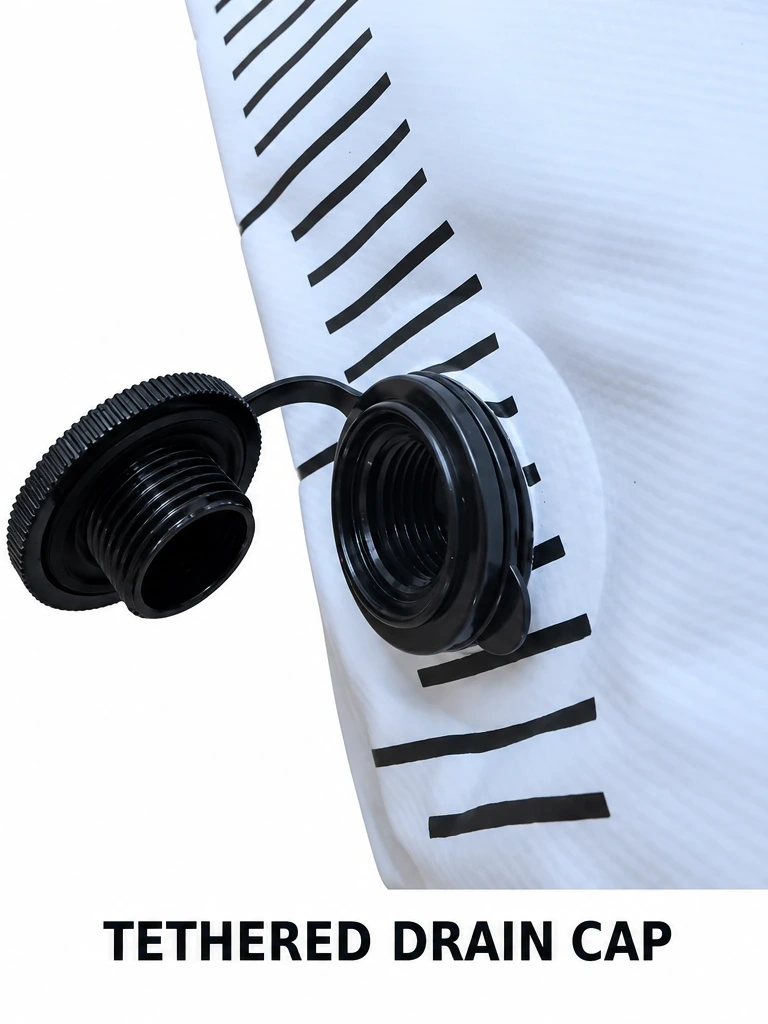

A tethered screw cap at the lower drain port
The close-up shows a threaded port, a screw-on cap and a short tether that keeps the cap associated with the bag when opened. The fitting sits low on the front panel so the drainage arrangement can be accessed without opening the main compartment. Review cap grip, thread engagement, gasket fit and the port-to-body connection during sample approval. Close the cap securely before checking liquid containment.
03 / FUNCTION & CONSTRUCTION

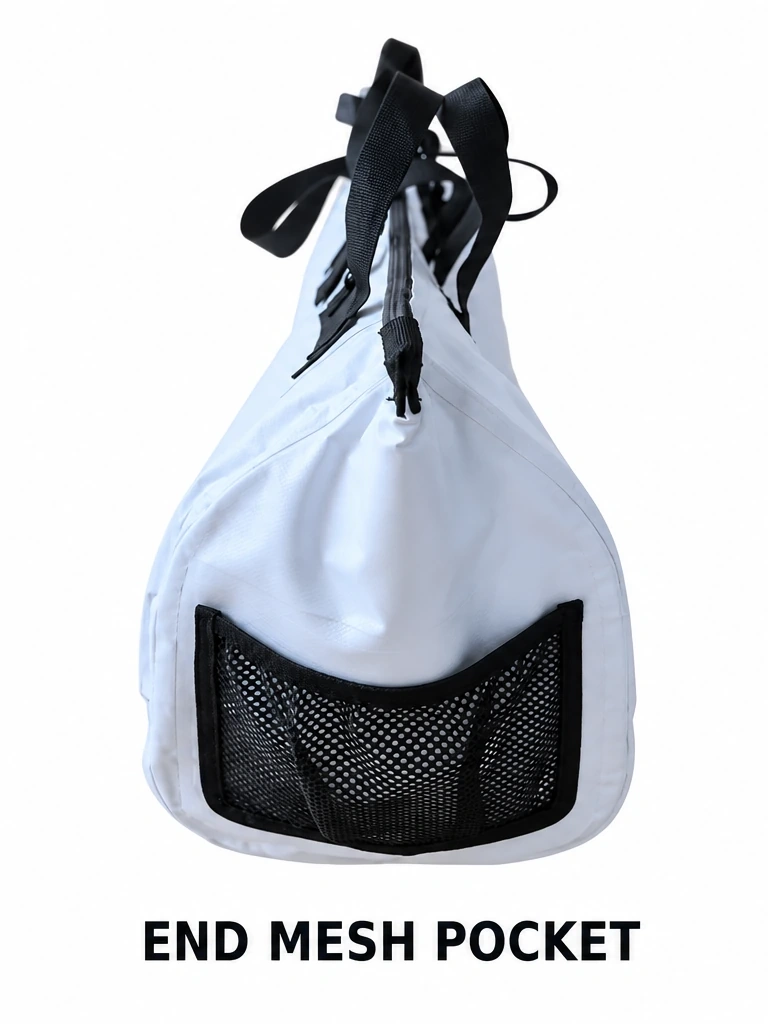

Mesh storage at the narrow end
A black mesh pocket is placed on the narrow side panel rather than taking space from the insulated main compartment. The open mesh construction makes it easy to see the contents and allows the pocket itself to drain. Use it for appropriate external accessories and confirm the pocket opening and dimensions with the sample. It should not be described as a sealed waterproof compartment for phones, documents or other valuables.
04 / FUNCTION & CONSTRUCTION
Distributed handle stations along the long body
Three visible handle stations are spaced along the top edge of the reference bag, each attached to reinforced black patches. The arrangement gives users positions to review when lifting and moving a long fish cooler. The source listing also mentions an adjustable shoulder strap, but its included configuration is not established by these photos. Write the exact handle and strap scope into the order specification and check the finished bag under the agreed load.
05 / FUNCTION & CONSTRUCTION

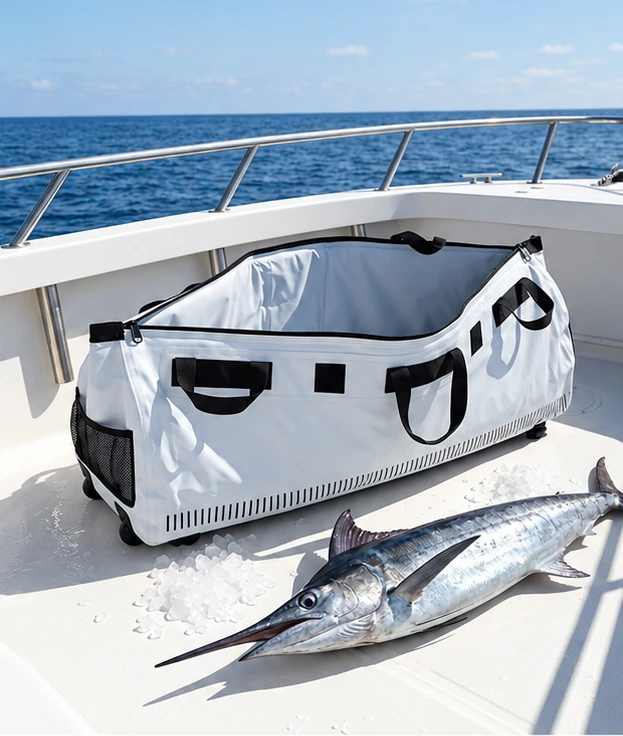

Insulated PVC storage with broad top access
The PVC shell, long zip opening and insulated cooler format are intended to work together for ice-assisted catch storage. A lighter body colour and black trim give the model a clean marine appearance while the soft sides follow the load. No insulation thickness or verified ice-retention duration is provided. Ask for the liner specification, closure details and a test under your intended conditions before using waterproof, leakproof or cooling claims in a retail specification.
06 / FUNCTION & CONSTRUCTION

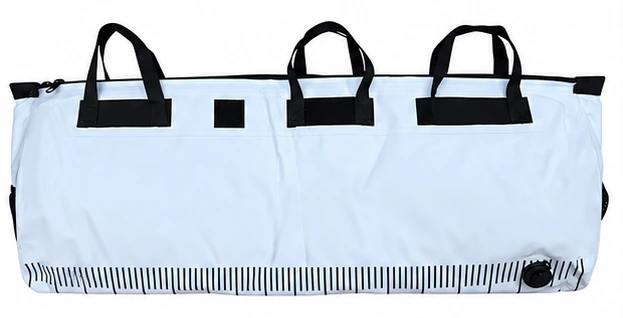

A plain panel for private-label fishing equipment
The long front panel provides a practical area to review for a custom fishing-bag logo. Keep the design clear of the drain fitting, handle patches and lower tick pattern. The printed tick pattern shown in the reference is not a verified calibrated measuring scale; do not use it as one unless a separate ruler specification is agreed. For wholesale insulated fish bags, confirm artwork, PVC finish, pocket size, handle spacing and packaging in a single approved model record.
