01 / FUNCTION & CONSTRUCTION

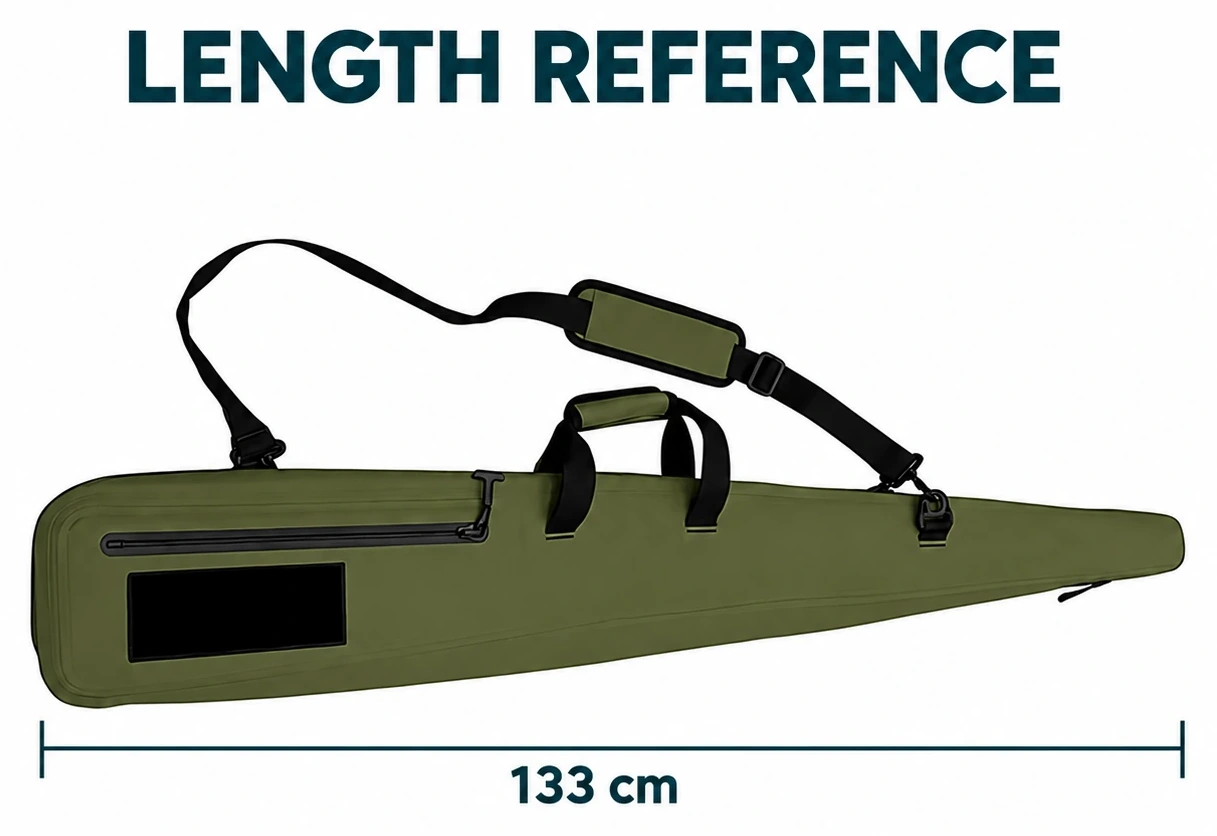

A tapered TPU case with a 133 cm length reference

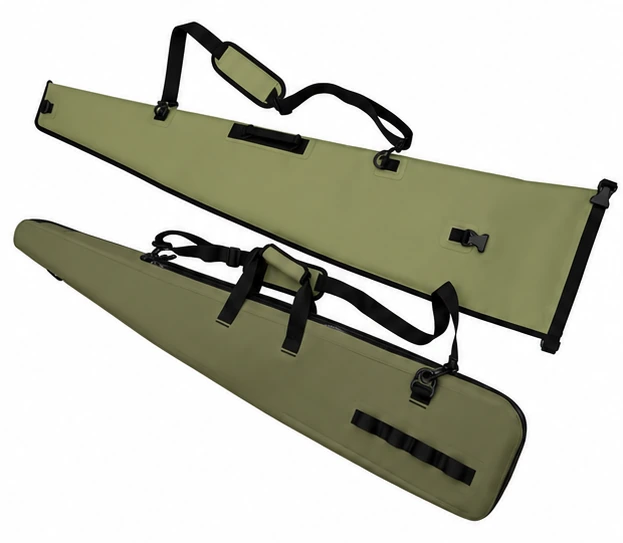

The case is broad at one end and narrows toward the opposite tip, giving it a shaped sporting-case silhouette. The supplied diagram identifies an overall length of 133 cm. That number is an external reference, not a guaranteed internal fit length. Compare the item envelope, width at the broad end and clearance around the closure when reviewing a custom soft gun case, then approve the measuring points on the sample drawing.
02 / FUNCTION & CONSTRUCTION
Twin carry handles for short transfers

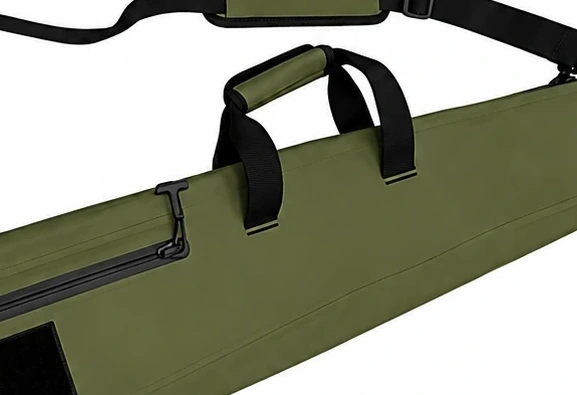

Two central handles sit above the body, with a matching grip section visible in the reference. They provide a straightforward hand-carry arrangement to compare with shoulder carrying. Review handle position, loaded balance and attachment reinforcement on the finished construction. The supplied photos do not establish a certified working load, so agree an appropriate loaded-lift check rather than assigning a weight rating from appearance alone.
03 / FUNCTION & CONSTRUCTION
An adjustable shoulder strap with a matching pad
The black webbing shoulder strap includes an olive shoulder pad and visible adjustment hardware. This creates another carrying option when the user wants to move the case between storage and an outdoor destination. Check the length range, pad position, attachment points and clip operation on the selected sample. Confirm whether the exact strap and hardware pictured are included in the quotation or are part of a customization proposal.
04 / FUNCTION & CONSTRUCTION
Separate front zip access and a rectangular patch panel
The side panel contains a horizontal zip pocket above a rectangular black patch area. This gives the model a separate external-access point and a place to review labels or removable identification. Define the pocket opening and lining before specifying its contents. A finished-bag weather requirement should address the front pocket independently; the visible zipper alone does not establish the same protection level as another compartment.
05 / FUNCTION & CONSTRUCTION
TPU shell and lining references to specify together
The supplied parameter sheet identifies TPU for the main material and lining. Material choice should be recorded with the actual thickness, backing, joining method and closure specification for a repeatable OEM gun bag. The source folder title mentions IPX7, but no test report is included. Confirm evidence for the exact finished model before publishing that rating; the material name and a closed-case photograph do not establish certification.
06 / FUNCTION & CONSTRUCTION
Custom branding that respects the case layout
The olive body, black patch area and matching shoulder pad provide different positions to consider for a private-label design. Keep artwork clear of the pocket opening, edge construction and handle attachments. Supply logo dimensions, colour reference and the desired label or print method, then review compatibility on a TPU sample. Confirm folding, packaging and appearance after transport before approving a wholesale soft-case order.
