ROLL & BUCKLE / EXTERNAL POCKET / DETACHABLE STRAP
DC-GUN-03 · Custom waterproof gun bag collection
Develop a custom waterproof gun bag around a long dry-bag layout with a roll-and-buckle mouth, separate exterior zip pocket and detachable shoulder attachment. The supplied olive reference has a 147 cm length illustration with 26 cm and 13 cm end widths. Close-up materials also show khaki hardware and closure references. This model gives a private-label outdoor case range a different access and carrying arrangement from the shaped TPU and plain PVC cases.
For outdoor case collections that want a long roll-top format with external pocket access, detachable strap hardware and a clear sample-approval brief.
LOOK CLOSER
01 / FUNCTION & CONSTRUCTION
The close-up shows the broad mouth folded or rolled before the buckle arrangement is secured. This is the model's main distinction from a shaped zip case. The usable length depends on the amount of material reserved for the agreed closure. Record the closing method and available internal envelope on the sample rather than treating the full 147 cm external reference as open storage space.
02 / FUNCTION & CONSTRUCTION
The olive overall view and the pocket close-up show a small exterior zipper with a loop puller on a defined panel. It provides access to a separate organizational space without opening the main mouth. Confirm its dimensions, lining and intended contents on the approved sample. Do not infer a completed waterproof rating from the printed words in the source image; the pocket and its closure need their own performance requirement.
03 / FUNCTION & CONSTRUCTION
The hardware photo shows a swivel-style clip connected to a ring held by webbing on a reinforced body patch. This gives a clear point to inspect for strap removal and reattachment. Review clip movement, ring dimensions, webbing stitching and patch construction on the selected material. The bag should be assessed under its agreed carrying load before any attachment strength is described in a product specification.
04 / FUNCTION & CONSTRUCTION
A matching pad is visible on the long strap, while the supplied detail set shows other ring or loop patches along the body. These references help a buyer define the desired carrying and hanging arrangement. Confirm which attachment points are present on the final colour and version. The photographs show different olive and khaki appearances, so a quotation should link hardware, strap and finish choices to one approved construction.
05 / FUNCTION & CONSTRUCTION
The reference illustration narrows from 26 cm at one end to 13 cm at the other, across a listed 147 cm overall length. These are flat measurements of the pictured body, not a stated depth or guaranteed usable volume. Check the actual opening, internal width, closure allowance and loaded shape with the intended equipment dimensions. Confirm the shell material and lining through a swatch because no separate material parameter sheet is provided for this folder.
06 / FUNCTION & CONSTRUCTION
Select artwork positions away from the pocket opening, clip patches and high-flex closure zone. Supply the target logo size, colour and order quantity, then ask for a compatibility sample on the chosen shell material. A private-label roll-top case brief should also record the exact buckle sequence, strap scope, any internal organization and packaging. This keeps an OEM waterproof gun bag order tied to the approved model rather than mixed reference photographs.
MODEL FACTS
Review material, construction and dimension references for this model. Confirm usable internal space, loaded handling, included accessories and performance on the approved sample.
Download specification summary ↓| Product reference | DC-GUN-03 |
|---|---|
| Bag format | Long tapered roll-top dry-bag case |
| Illustrated overall length | 147 cm |
| Illustrated flat end widths | 26 cm broad end / 13 cm narrow end |
| Main closure reference | Rolled/folded mouth with buckle arrangement |
| External access | Separate small zip pocket |
| Shoulder attachment | Detachable clip and reinforced attachment patch shown |
| Shoulder pad | Matching pad on webbing strap shown |
| Additional attachment | Ring/loop patches shown in supplied views |
| Finish references | Olive overall view; khaki detail references |
| Material composition | Confirm with swatch and approved specification |
| Internal capacity and load | Confirm usable envelope, closure allowance and load requirement |
PRODUCT VIEWS
See the overall shape, carrying options and available references before reviewing the key details. Select any image to enlarge.
Complete body with outer pocket.

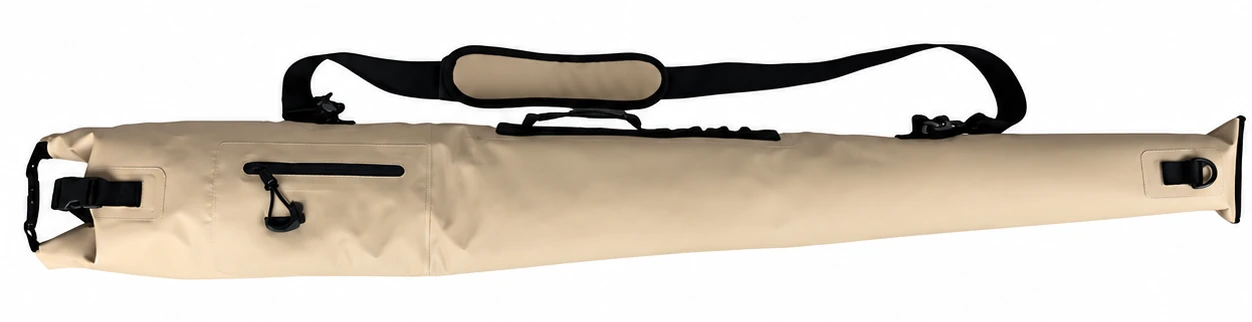

Actual khaki variant and strap layout.

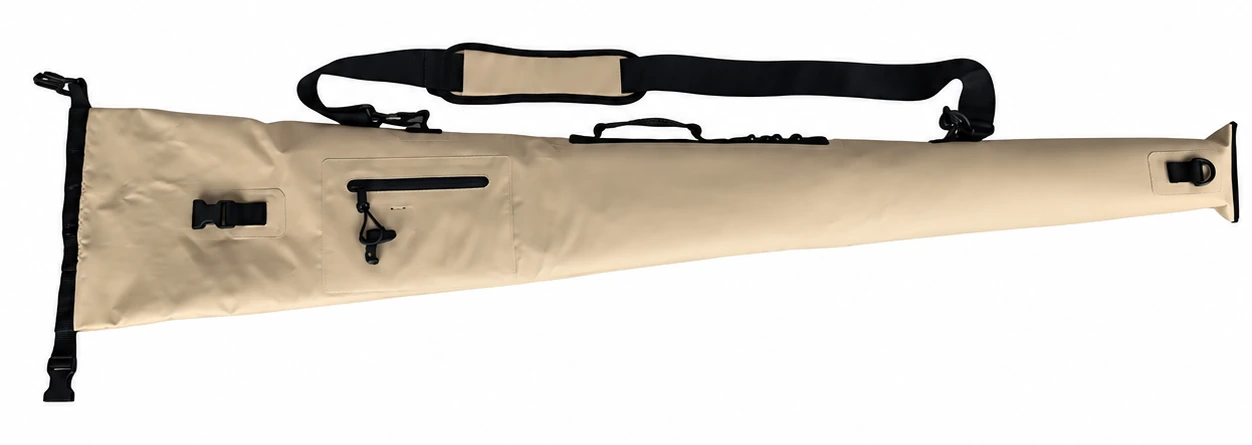

Second full-length view of the supplied khaki variant.

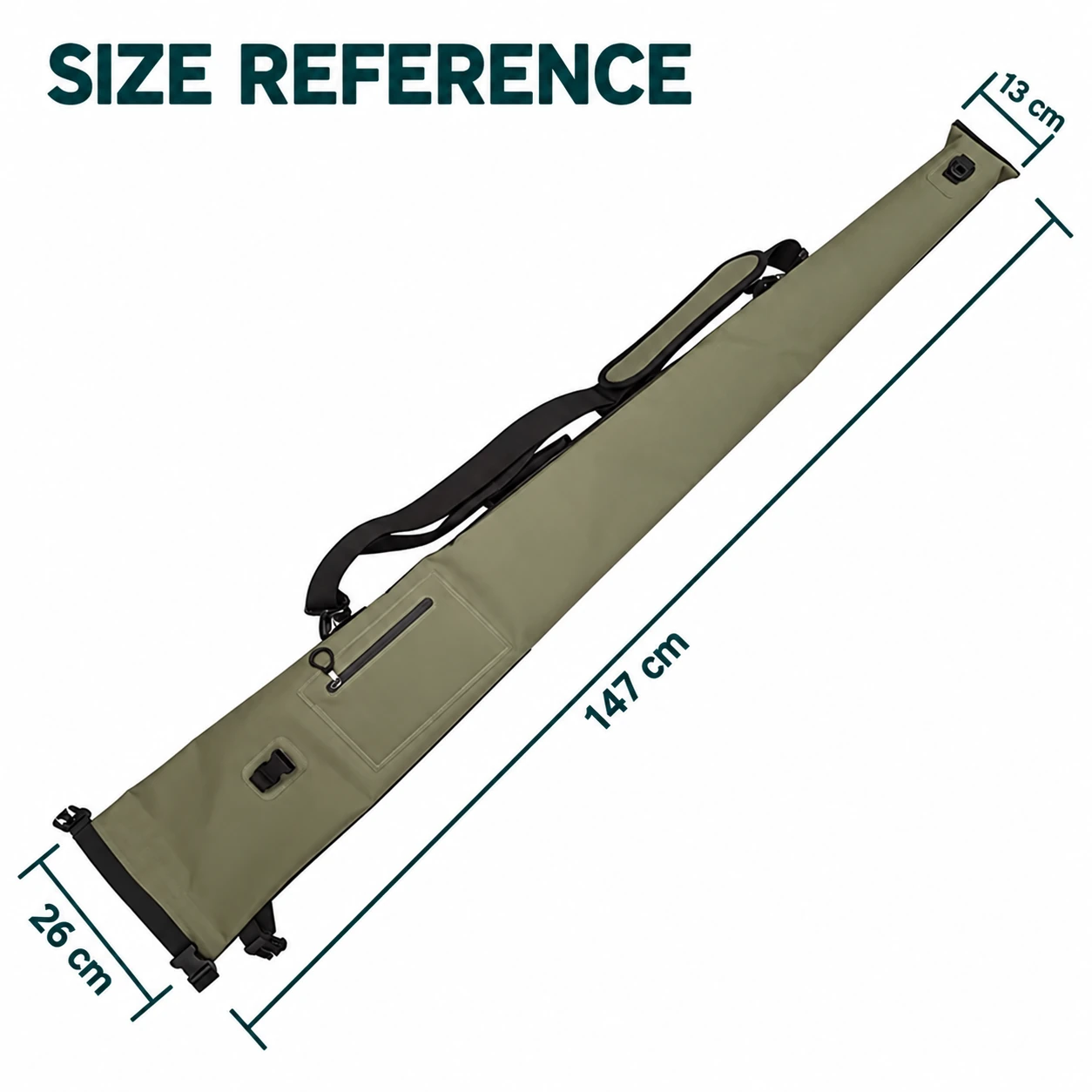

147 cm length; 26 cm / 13 cm end references.

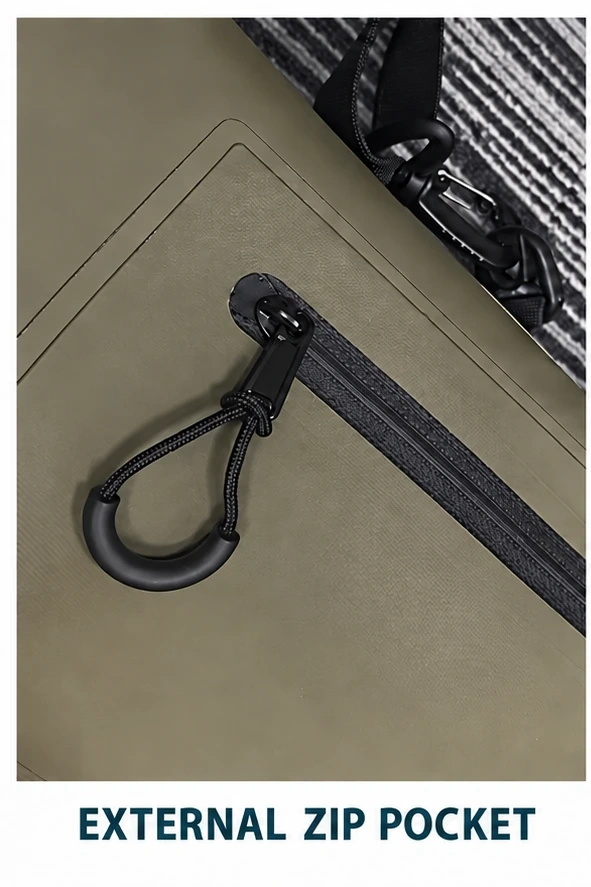

Zip pocket construction.

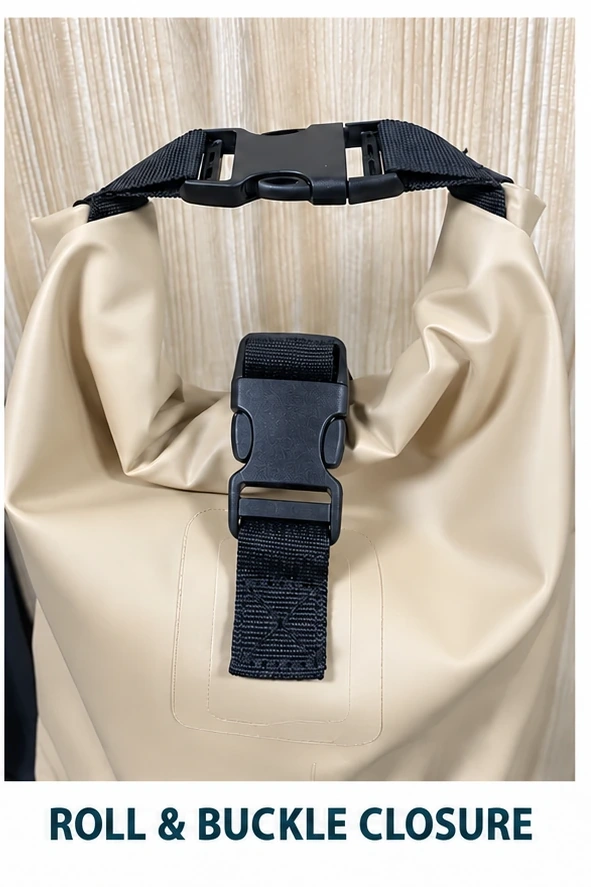

Closure and buckle reference.
CUSTOM LOGO / OEM / PRIVATE LABEL
Choose the olive or khaki appearance as a reference and confirm the exact material before sampling. Supply usable dimensions, closure allowance, clip and buckle requirements, pocket scope, logo layout and quantity. Identify any lining or cushioning changes explicitly so they can be reviewed as part of the development scope.
Flat size reference: 147 × 26 cm. Folded packing will be arranged to protect the roll-top closure, exterior pocket and strap fittings. Tell us your required quantity, packing preferences and delivery address. We will calculate the carton details and shipping cost for your order.
PRODUCT & ORDER QUESTIONS
The detail references show a rolled or folded broad-end mouth and buckle arrangement. Confirm the required closing method and its effect on usable internal length with the sample.
Yes, the supplied images show a small external zip pocket. Confirm its usable dimensions, lining and closure requirement independently.
The diagram gives 147 cm overall length and flat end widths of 26 cm and 13 cm. Internal usable fit and closure allowance must be measured on the approved construction.
No separate material parameter sheet is included for this folder. Confirm the shell composition, thickness, lining and joining method with a swatch and sample before quotation.
They are references within the supplied product materials. Confirm the exact colour, pocket, clip, strap and closure combination in one approved model record.
Send the desired layout, artwork and quantity. DryCross can review material compatibility, construction changes, sampling, MOQ and the resulting order scope.
