01 / FUNCTION & CONSTRUCTION

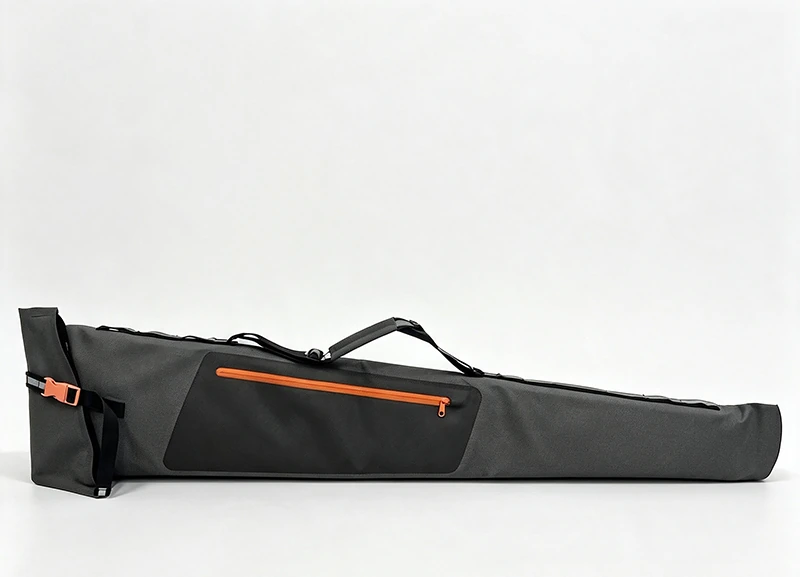

A dark tapered body with orange closure details
The long profile is broad near the opening end and tapers toward the opposite tip. Orange zipper and buckle accents stand out against the dark body, creating a clear visual identity for a coordinated sporting-accessory collection. Use the supplied references to discuss panel shape, edge finish and colour contrast. The exact dimensions and material composition are not provided, so those details need a physical sample and a recorded specification.
02 / FUNCTION & CONSTRUCTION

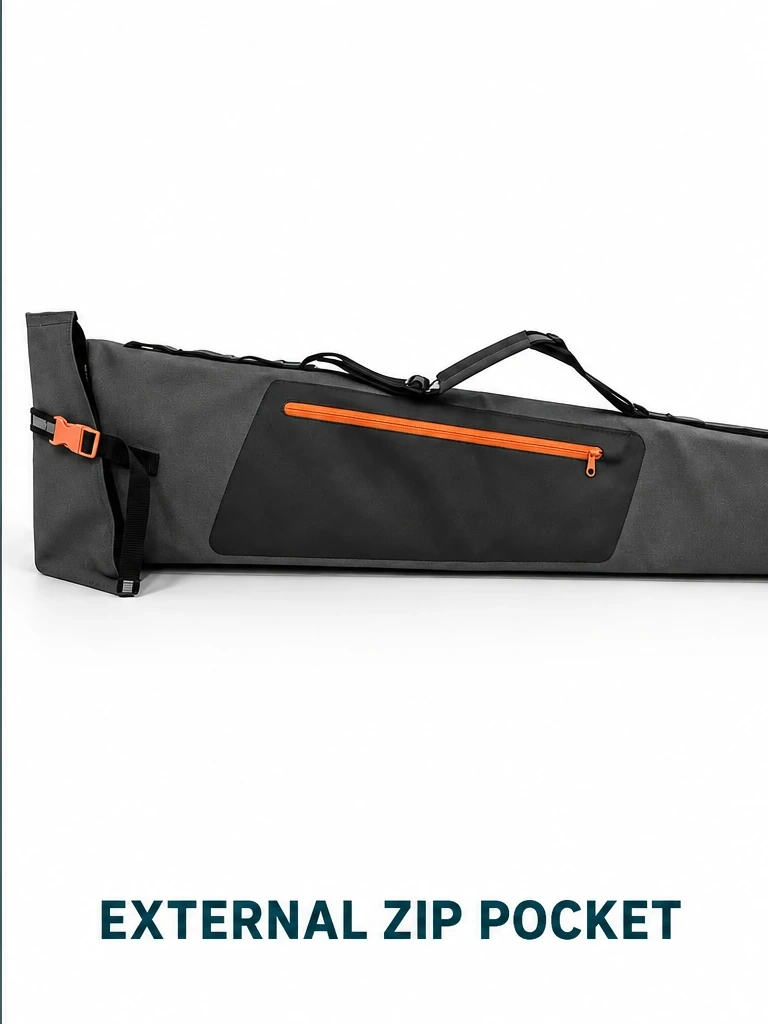

A long external zip-pocket reference
A horizontal pocket with an orange zip line is visible on the side of the case. It adds a separate external access point to the otherwise plain body. Confirm the pocket depth, lining, zipper reach and any internal organization on the model sample. This view does not establish a padded compartment or a particular device or accessory fit; specify the intended use and required pocket dimensions in the development brief.
03 / FUNCTION & CONSTRUCTION

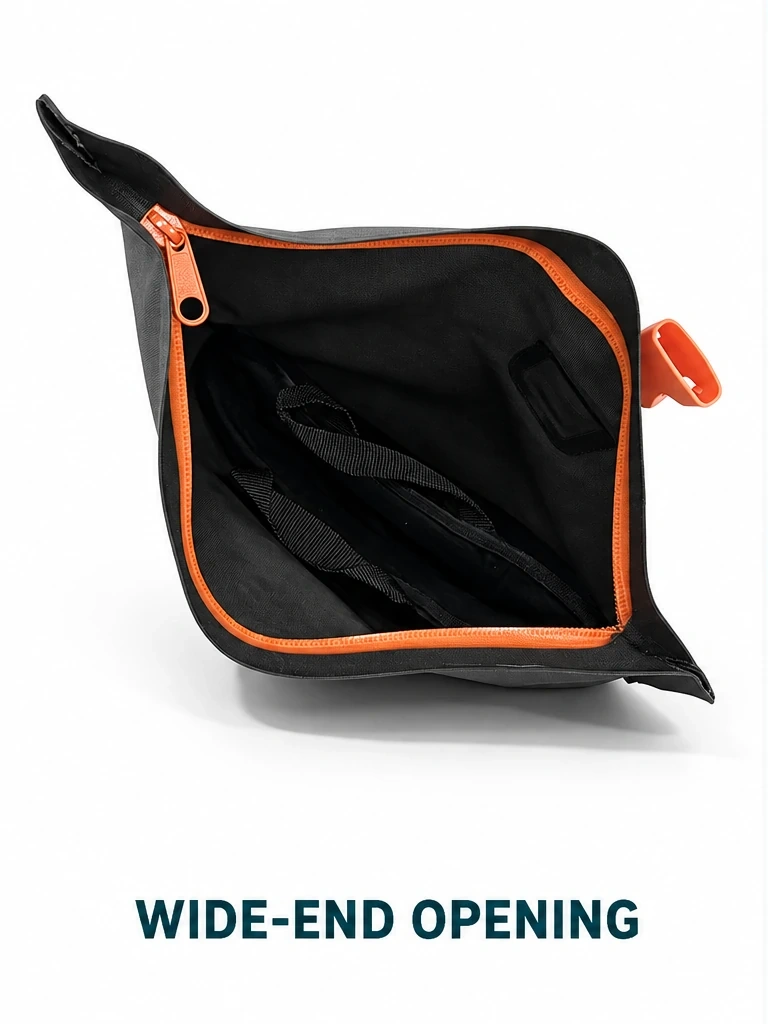

A broad-end opening with a visible zipper edge
The open-end view shows an orange zipper edge around a broad mouth, with black internal material and webbing visible. Other exterior views show a fold and buckle arrangement at that end. Confirm how those elements work together on the finished physical model rather than inferring a closure sequence from separate images. Record usable opening dimensions, fastening scope and the closing method before defining the production construction.
04 / FUNCTION & CONSTRUCTION
Carrying straps and an adjustable webbing reference
The overall views show hand-carry straps with a joined grip area, while the angled image includes adjustment hardware along the webbing. These are details to review for fit, handling and attachment reinforcement. The supplied carrying scene illustrates scale and appearance, but it is not a loaded handling test. Confirm the exact strap arrangement, included components and any working-load requirement on the approved model.
05 / FUNCTION & CONSTRUCTION
Contrast trim and interior details to review in a sample

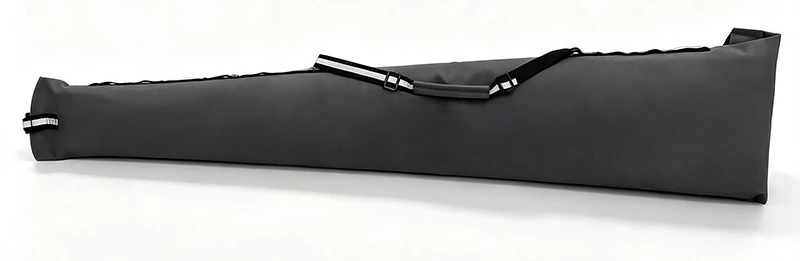

Light contrast detailing runs along part of the case edge in the supplied angled view. No quantified reflectivity or safety certification is included, so it should be treated as a visual trim reference. The interior photograph also does not establish foam thickness or impact protection. Specify any lining, cushioning, reflective material or additional organization separately and verify it on the selected sample.
06 / FUNCTION & CONSTRUCTION
A specification-first private-label development route
This folder contains product and carrying images without a supporting size or material parameter sheet. Use the appearance to define the desired collection direction, then request a physical sample, usable internal measurements and material swatches. Agree zipper, buckle, lining and joining details before approving waterproof claims. A custom-logo gun case brief should keep artwork clear of opening edges, carry attachments and flexible fold zones.
