01 / FUNCTION & CONSTRUCTION
A long, plain-panel body with a tapered profile

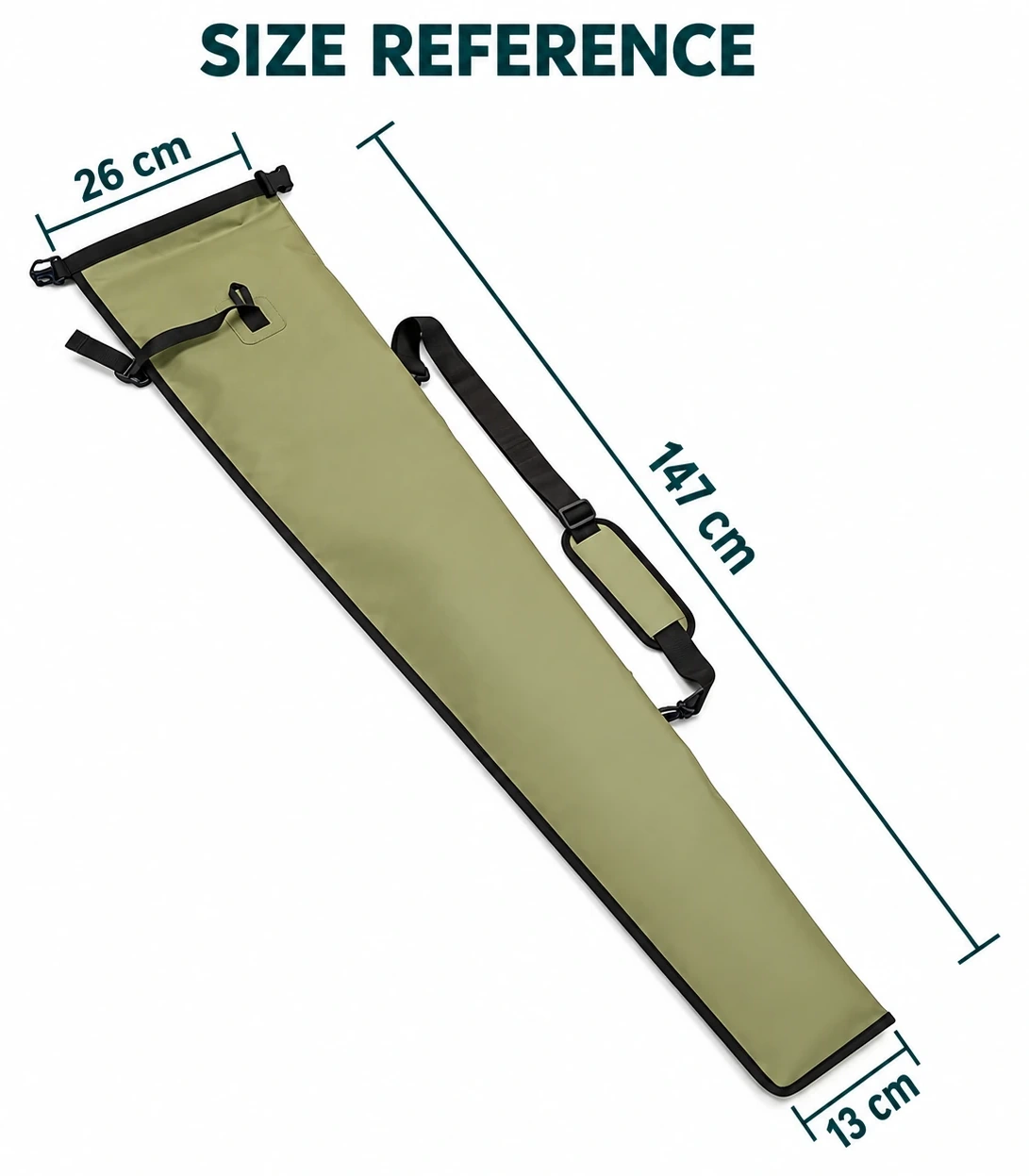

The case narrows from the broad opening end toward the tip. Its uninterrupted side panel gives the model a simpler appearance than the external-pocket roll-top version in this collection. The 147 cm illustrated length and two end-width references help define the starting envelope. Review the actual usable interior and closure allowance before determining fit; the flat outline does not establish a rigid volume or a three-dimensional depth.
02 / FUNCTION & CONSTRUCTION
Wide-end access shown in a dedicated opening photo

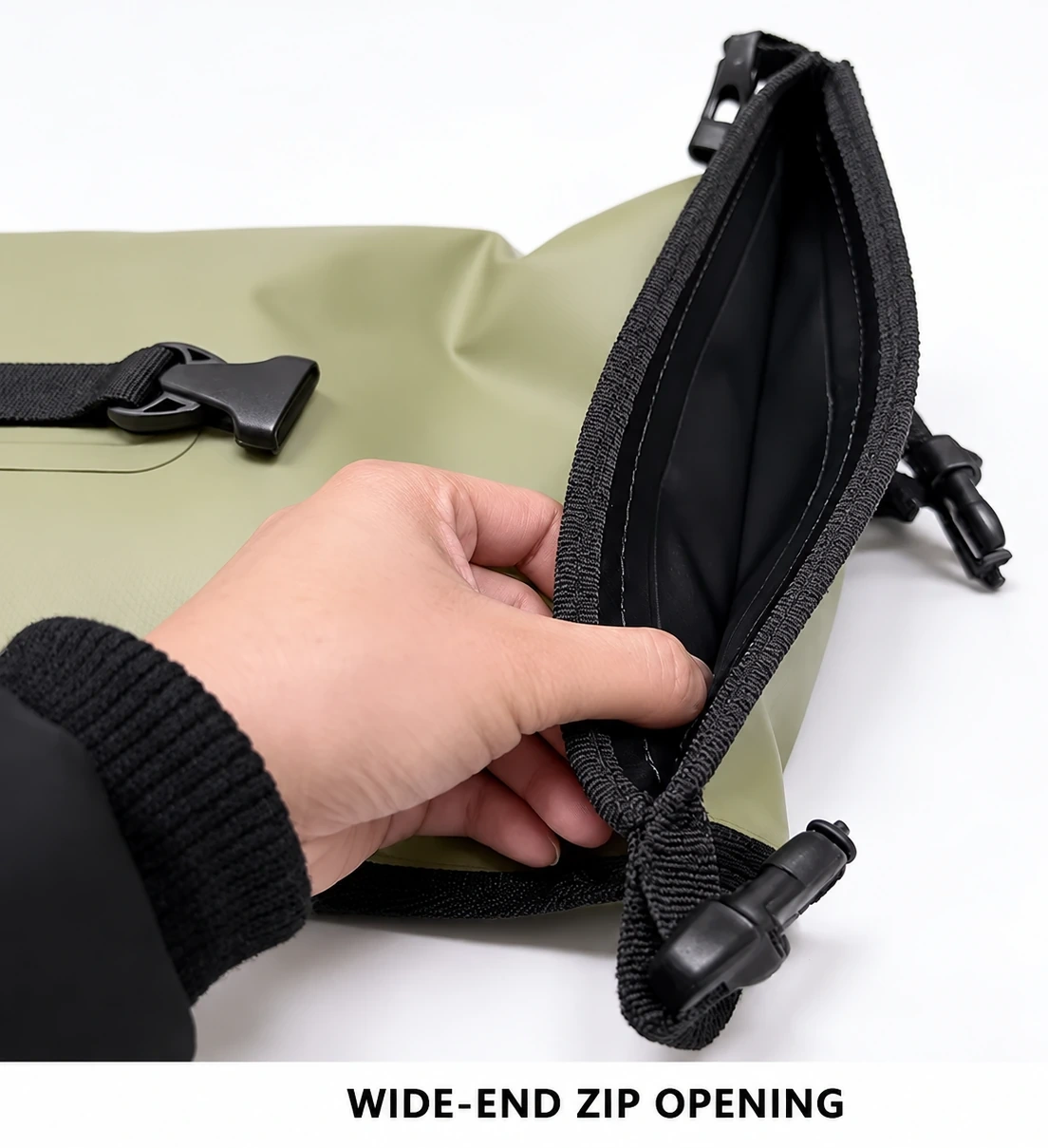

The opening close-up shows access through the broad end, with a black zip edge, interior surface and adjacent buckle hardware visible. This provides a concrete reference for reviewing loading access without relying only on a closed product view. Confirm zipper travel, the opening shape and the complete exterior fold or buckle arrangement on the sample. The quotation should describe the finished closure sequence for the selected version.
03 / FUNCTION & CONSTRUCTION
Shoulder strap and pad for a coordinated carry layout
The long webbing strap includes a matching olive shoulder section and visible adjustment hardware. Its attachment points are spaced along the body. Compare strap reach, balance and hardware access when reviewing the intended carrying routine. The model-specific sample should establish the exact strap and fittings supplied, while a separate lift and handling check should establish any load requirement stated in the purchase specification.
04 / FUNCTION & CONSTRUCTION
A short handle for convenient hand carrying
A compact carry handle is attached along the plain side panel. It gives the user an alternative grip when transferring the case over a short distance or positioning it for storage. Review its location against the loaded centre of balance, the hand clearance and the attachment reinforcement. No rated working load is given in the supplied materials, so keep any capacity claim tied to an agreed test.
05 / FUNCTION & CONSTRUCTION
PVC material references with room for a custom finish
The parameter sheet lists PVC as the main material and 500D PVC in the lining field. Confirm how those fields correspond to the actual coated construction, thickness and backing rather than assuming a complete material bill from a title. Choose the colour and surface finish with physical swatches. A custom waterproof soft case also depends on the joining method, zip, fold and attachment areas, all of which should be recorded for sample approval.
06 / FUNCTION & CONSTRUCTION
A clean panel for private-label case branding
The smooth long side gives a branding team space to review artwork without an external pocket interrupting the layout. Position the logo clear of the handle, shoulder attachments and end closure. Ask for a print or label compatibility sample before agreeing the production method on PVC. For wholesale waterproof gun bags, keep the material, usable dimensions, strap scope and packing method in one approved model record.
